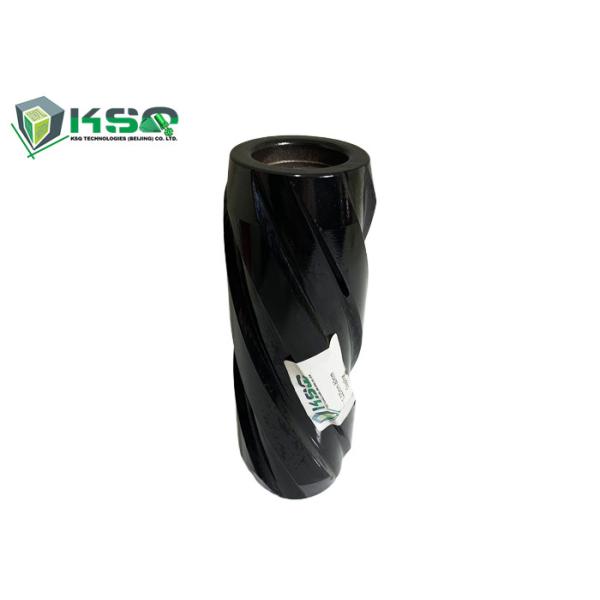

Mining Equipment Accessories Coupling Sleeve T45 Drill Pipe Coupling
Product Description:
Coupling sleeve,called coupling too,using connect extention rod and shank adapter.We can produce semi-bridge and fully-bridge according to your requirement.
The connecting sleeve is mainly used for the shank and the drill rod and the drill rod and the connecting rod is connected between the. For reducing the connecting sleeve and the connecting sleeve with the same diameter. Main specifications R32, T38, T45, T51 reducer connected set of R25-R32, R28-R32, R32-R38, R32-T38, R32-T45, T38-T45 and, due to the need of energy transfer and handling, on the material properties and processing technology of higher requirements, connecting sleeve of my company's production, the high quality alloy steel forging processing into, the thread processing the special machining center, high machining precision, with good thread and prolong the prolonging the service life of the connecting sleeve.
Specification and function of the coupling sleeve:
Full-Bridge Coupling sleeve
Eliminates the potential for the coupling to creep along the threaded joints
Typically used in surface applications
Better uncoupling characteristics and tend to maintain tighter joints
Less chance of jamming
Best suited to machines equipped with independent rotation.
Semi-Bridge Coupling sleeve
Small non-threaded bridge in the center
Steel cannot thread past bridge area
Smaller diameter steel end portions fit together in the centre bridge area of the coupling
Semi-bridged couplings are most suited to high torque machines
Most rope and T threaded couplings are semi-bridged
Same diameter Coupling sleeve
Eliminates the potential for the coupling to creep along the threaded joints
Typically used in surface applications
Better uncoupling characteristics and tend to maintain tighter joints
Less chance of jamming
Best suited to machines equipped with independent rotation.
Products Parameters:
| Coupling Sleeve |
| Length | Diameter | Thread | Weight | Part Number |
| mm | inch | mm | inch | | kg | |
| R25 Coupling Sleeve |
| 150 | 6 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
| 155 | 6 1/9 | 44 | 1 3/4 | R25 | 1.0 | 4148300430 |
| 160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
| R28 Coupling Sleeve |
| 150 | 6 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
| 170 | 6 2/3 | 55 | 2 1/6 | R28 | 2.0 | 4148300484 |
| R32 Coupling Sleeve |
| 150 | 6 | 44 | 1 3/4 | R32 | 1.0 | 4148300646 |
| 160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
| R38 Coupling Sleeve |
| 170 | 6 2/3 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
| 190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
| T38 Coupling Sleeve |
| 190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
| T45 Coupling Sleeve |
| 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3.0 | 4148300881 |
| 210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
| T51 Coupling Sleeve |
| 225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
| 225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
| 235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
| 235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
